Let’s talk about point cloud!

Published by admin on

Let's talk about point cloud

Location

Wuppertal, Germany

Surveying equipment

Trimble MX9 Mobile Mapping System

Final products

-Registered, georeferenced and colored point cloud -Matched panorama pictures on point cloud -Orbit 3DM Publisher

3D laser scanning or high definition surveys are a fast and efficient way of collecting spatial data of the environment.

DataDEV can provide a registered point cloud, filtered to client specification.

The scope of this project was a laser scanning of 1200 km streets of Wuppertal.

A Trimble MX9 Scanner was used for data capture. All scan data was registered into a single coordinate system.

Initial processing of point cloud was done in Trimble Trident Software.

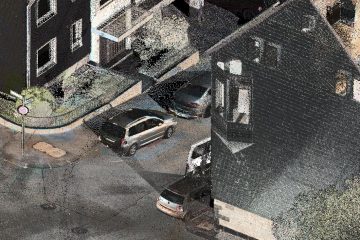

Building corner before matching process

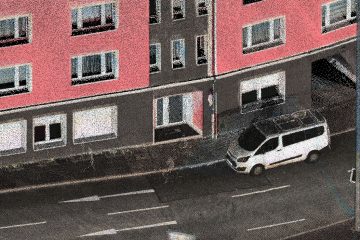

Building corner after matching process​

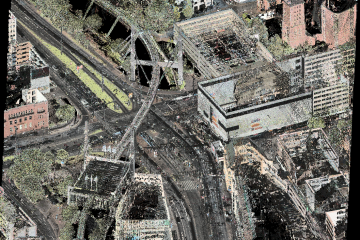

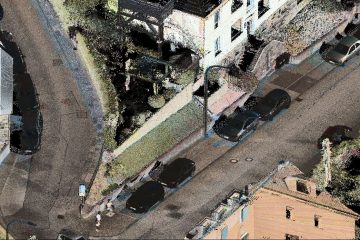

Matched, georeferenced and colored point cloud

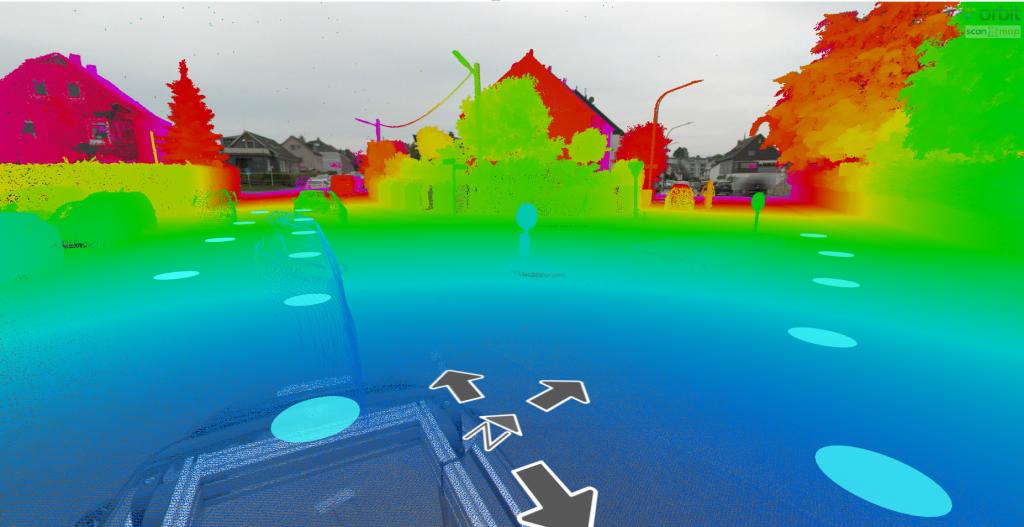

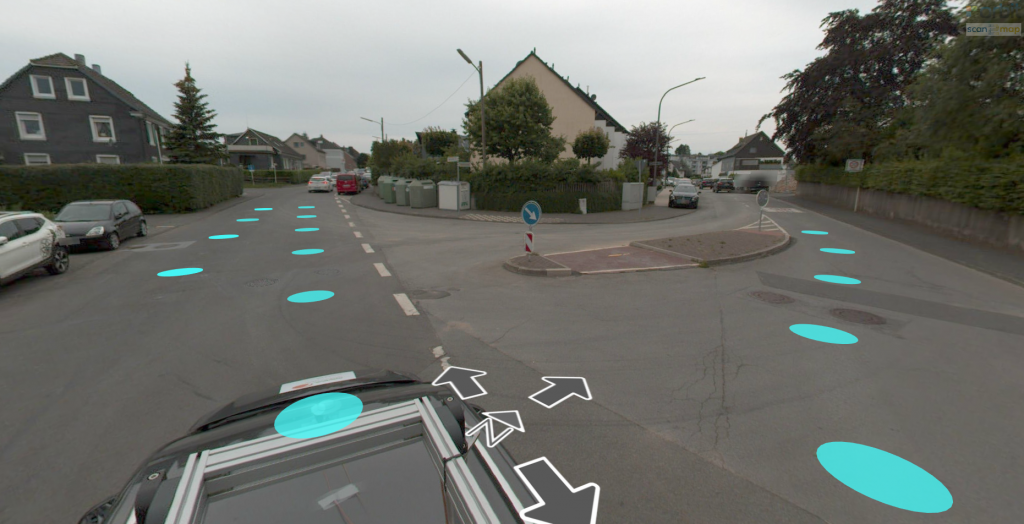

Orbit 3DM Publisher: Point cloud with panoramic images

Manual measurements:

   -3D coordinates extraction

   -length and height

   -distance

   -angle

   -area

   -volume
